Project Overview

Abstract

With this project, we'll be creating hard- and software for enabling ethernet on an Atmel microcontroller. fd0 first built a prototype of it on lochraster and then made a fully-featured PCB afterwards, which will be sold as a construction set later on. Everyone with moderate soldering skills will be able to build this device. Only two SMD-devices are used (One is optional - And yes, that's a feature!).

Features

At first we only had the design-target to create an ethernet-enabled microcontroller platform. But then we thought of all the great things that could be done with such a device and therefore added a lot of different interfaces and hardware. Today, the following features are either built-in or easily available:

Extensions:

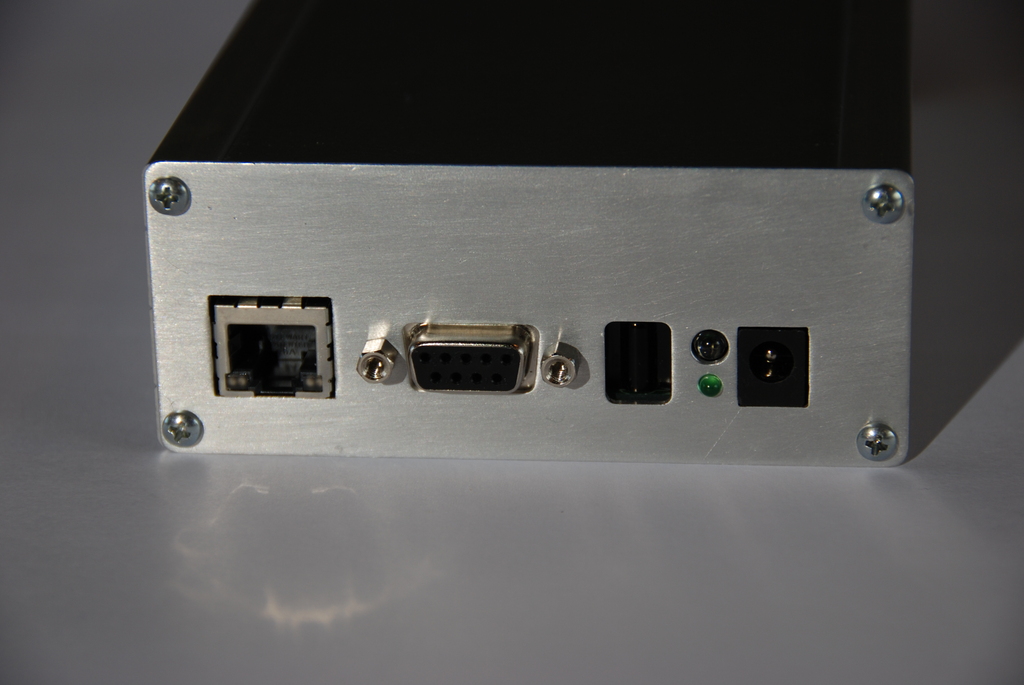

Housing:

Hardware

etherrape schematic

On the pictures you can see that only a few different parts are needed for ether-netting a microcontroller. The later prototypes show the various plugs for all kinds of nifty enhancements. Every unused port pin on the controller is available as a pin.

Software

The etherrape firmware is in active development, please test the development version!

Up to now, the current stable version is 0.1, which can be found here:

The development version can be found at the git repository website. You can obtain the code in two different ways: Either click on "snapshot" on the top log line in the repository website, or use git to check out a local copy of the repository:

git clone git://igit.ath.cx/fd0/etherrape

This checkout can be updated with:

git pull origin

Software Requirements

In order to work with the etherrape firmware, you only need a few things:

Documentation and Support

Documentation can be found our wiki and support is available via the mailing list etherrape _AT_ lochraster.org listinfo and subscription here. If you're lucky you can try asking questions on IRC (#lochraster.org on irc.oftc.net).

For the construction sets (hardware v9), there are some more interesting documents:

Presentations

We have given a few presentations about this project:

If you would like us to give a presentation, just write to contact AT_ lochraster _DOT org.

Pricelist

de-SOLUTION offers construction sets and more (Webshop here), prices:

Current Pictures

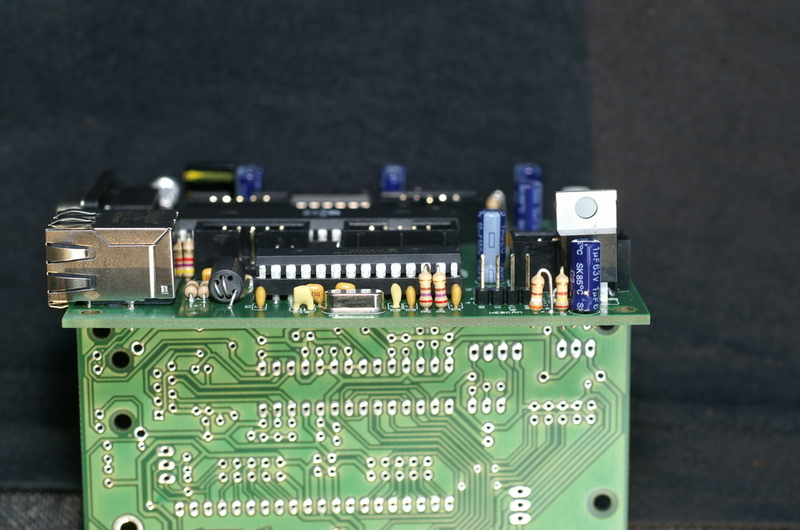

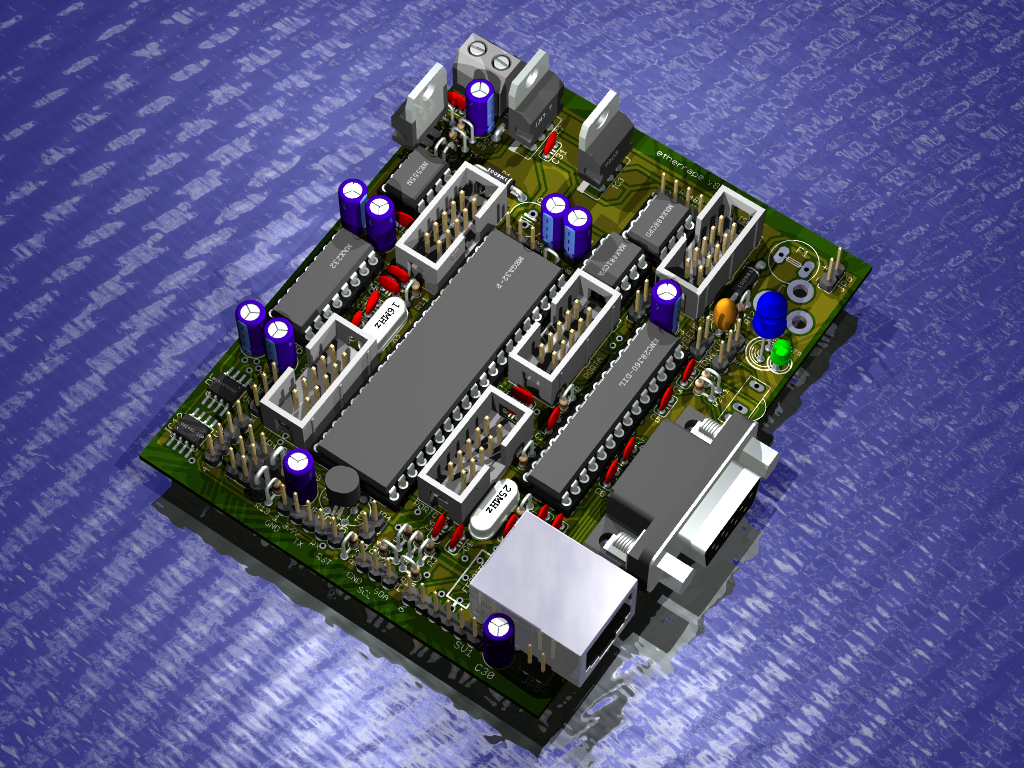

prototype 8 (rendered) prototype 8 prototype 8 prototype 8 prototype 8
prototype 8 prototype 8 prototype 8
prototype 8 prototype 8 prototype 8

Old Pictures

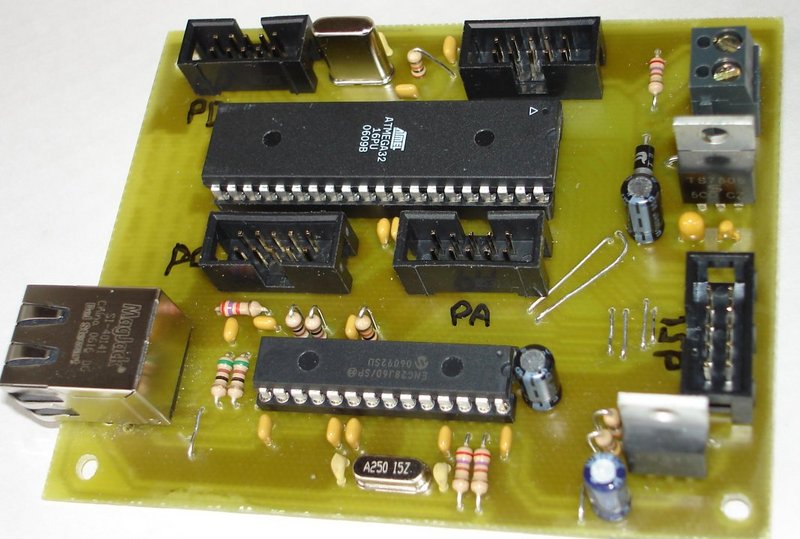

etherrape prototype 1 (lochraster) etherrape prototype 2 (top) etherrape prototype 2 (bottom) etherrape prototype 3 (top) etherrape prototype 3 (bottom)

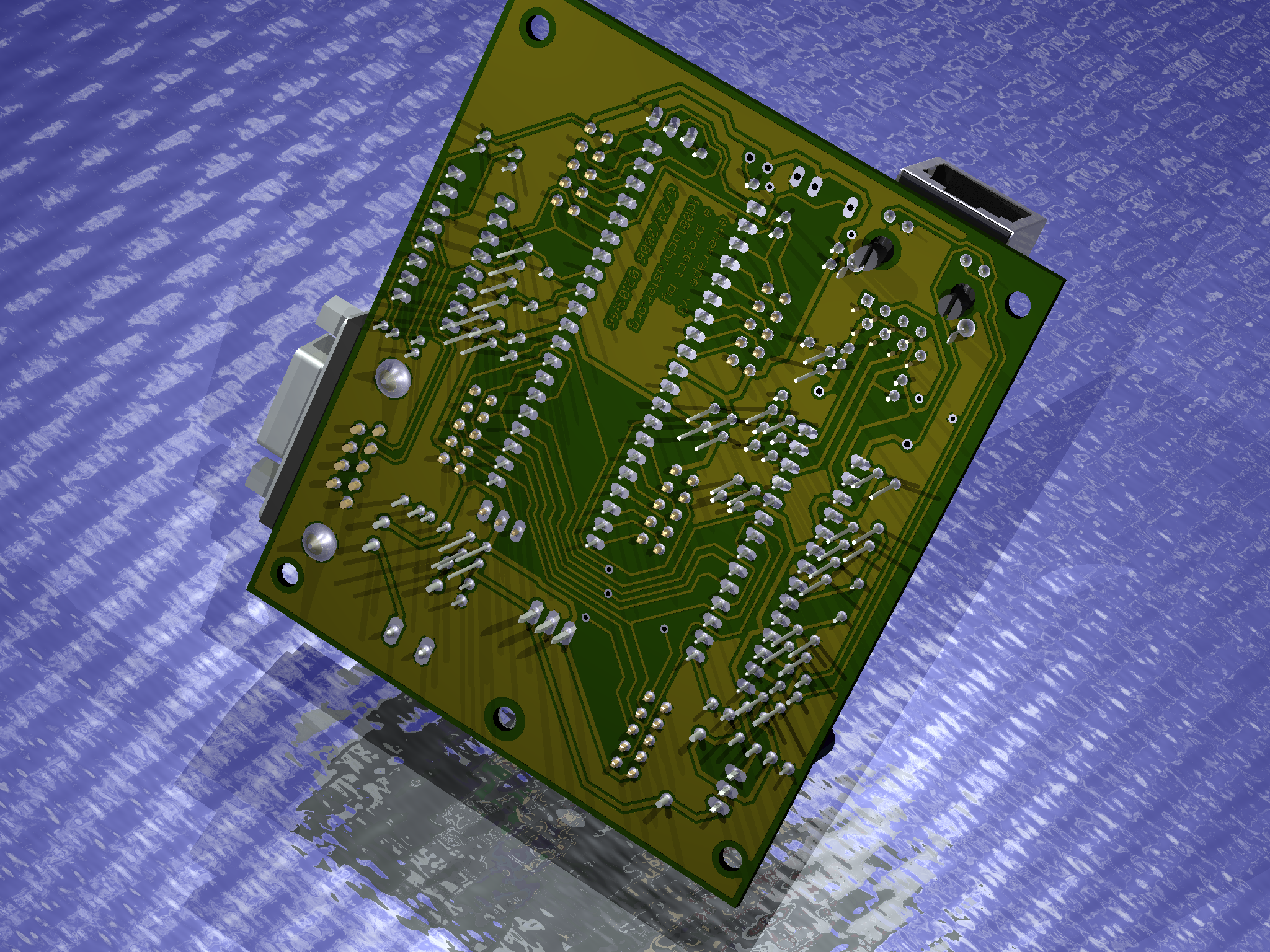

etherrape prototype 4 (top) etherrape prototype 4 (bottom) etherrape prototype v5 etherrape prototype v5 etherrape prototype v5
etherrape prototype v5 etherrape prototype v5 etherrape prototype v5 etherrape prototype v5 etherrape prototype v5
etherrape prototype v5 etherrape prototype v5 etherrape prototype v5
